300mm(12") led traffic light 3 full balls
Characteristics:
1)Light intensity automatically adjustable.
2)Low power consumption(save up to 80% energy compared with
traditional incandescent lamps) .
3)Visual angle larger.
4)Long lifetime(more than 50,000hours).
5)Nice design&Excellent appearance.
6)Multi-ply sealed water resistant.
7)Exclusive optical lens,good Color uniformity.
8)Power supply is common for all over the world.
Description:
Traffic lights normally consist of three signals, transmitting
meaning to drivers and riders through colours and symbols including
arrows and bicycles. The regular traffic light colours are red,
yellow and green, arranged vertically or horizontally in that
order. Although this is internationally standardised,[4] variations
exist on national and local scales as to traffic light sequences
and laws.
Led Specifications:
Diam. 300mm
|
Luminous(mcd)
| Photo | Emission Color | Led quantity | Wavelength(nm) | Visual Angle | Power Consumption |
Left/Right | Down |
≥4000
|  | Red | 165pcs | 625±5 | 30 | ≤15W |
≥4000
|  | Yellow | 165pcs | 590±5 | 30 | ≤15W |
≥4000
|  | Green | 165pcs | 505±5 | 30 | ≤15W |
11) Packing Information:
Diameter 200mm (8 inch) LED Traffic Lights with 3 full balls
Packing Size:
| Quantity | Net Weight.(kg): | Gross Weight (kg): | Wrapper | Volume(m3): |
1230*400*200mm
| 1 unit/Carton | 10.00 | 12.00 | K=K Carton | 0.10 |
12)Packing list
Lamp | L- Bracket | Sun Visor | Decorative Board | M4X10 Screw | M4X8 Screw | Instruction | Certificate |
| 1 | 2 | 3 | 4 | 12 | 8 | 1 | 1 |
5. Installation Illustration:

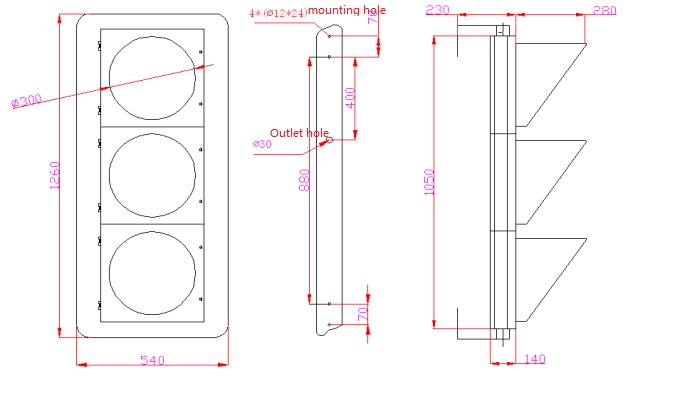

6. Size Drawing:
7. The instruction of wire connection:
Light color corresponds to the wire color: black wire for the common, the red wire for the red light, the yellow wire for the yellow light and the green wire for the green light.
8. The instruction of wire connection:
Light color corresponds to the wire color: black wire for the common, the red wire for the red light, the yellow wire for the yellow light and the green wire for the green light.
9. The Drawing of installation in the road crossing
