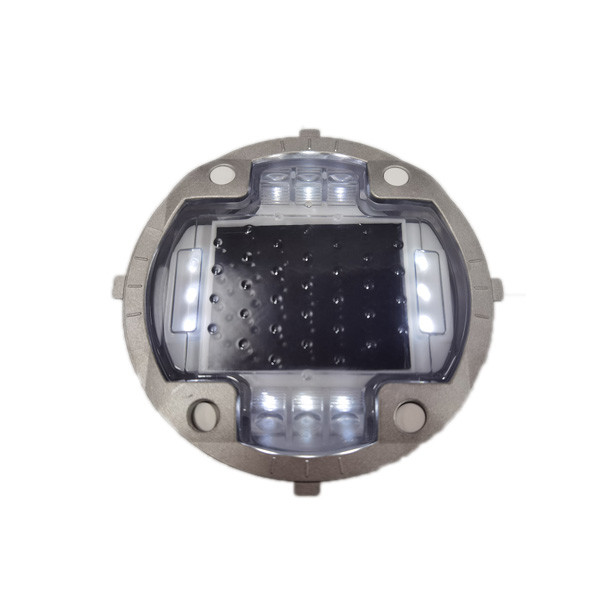

Newest Underground Solar Light High Weight Resistance Solar LED
Road Studs
Quick Detail:
● Underground solar road stud,it will flush with the ground
● 10MM thickness Anti UV PC cover and fully epoxy glue inside,can
install in the central line of the road
● High-temperature resistance battery and circuit,can be used on
the equator
● 12pcs Diam. 5mm high brightness LED,Visual Distance more than
1000meters
● Protect Level IP68
● Silver coating aluminum casing and nice design
● With 4 legs,it can flush with the ground when install
● The light body can take out,easy maintain
Description:
• Close the road
• Check if the solar stud charges and discharges normally
• Identify the place for installation
• Drill the hole Diam.152mm with drill machine
• Inject the epoxy glue or cement into the hole and take the solar
road studs into the hole, make sure the solar road studs flush with
the ground.
• Wait 8 hours for glue drying before open the road
Specifications:
| Model | CS-SR-828 |
| Solar Panel | 2.5V/500MA mono-crystalline |
| Storage Components | 1.2V/1200MAH Anti-high temperature battery |
| Lighting Time | 72h after fully charged |
| Work mode | Flash or Stable |
| LED Color | Red,Yellow,Blue,Green,White |
| LED Qty | 12PCS Diameter 5mm High Brightness LED |
| Visual Distance | ＞1000meters |
| Life Span | 3-5Years |
| Work Temperature | -20℃～+80℃ |
| Protect Level | IP68,Can work under water |
| Material | Anti-UV PC+silver coating Aluminum casing |
| Weight | 1200g |
| Weight Resistance in static | ＞50 Tons |
| Products Size | Diamter 150mm,Height 47mm |
| Package | Carton size 39*27*28CM,24pcs per carton |
Size drawing:
Notices:
· 1. Open the packaging, check the products carefully, and take
them gentely.
· 2. It should install it outside to get better sunshine
· 3. It should charge it and check it lighting before installation
Packing and shipping:
Applications:
Company information:
Shenzhen CadSolar Technology Co., Ltd, located in Shenzhen, is a
hi-tech enterprise specialized in manufacturing solar& LED traffic
products. With "Technology Innovation , Friendly Environment ,
Green Future” motto, Shenzhen CadSolar creates many solar LED
traffic products step by step. After 6 years of efforts, most of
our products are exported to Germany, France, Australia, New
Zealand, Saudi Arabia, Dubai, Indonesia, Malaysia, Vietnam,South
Africa, Kenya,Brasil, Chile etc...
Our Main Products as belowing:
A. Solar road studs/reflective road studs
B. Solar led warning light
C. Solar Led traffic signs
D. Wired road studs
E. Solar led traffic light
F. Led traffic signal light
