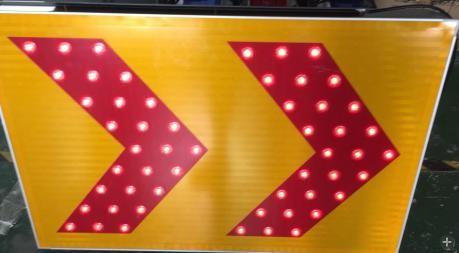

Aluminum solar chevron sign with CE approval
Quick Detail:
· Easy Installation
· Energy Saving
· IP65 protect level
· CE approval
· 2 Years Warranty
· High Luminance
· Good visible on foggy&rainy days
· Long lifespan
Description:
Solar chevron sign will guide and warn the driver carefully.It is
charge in the daytime by the solar panel,then instore the energy in
the Lithium battery,it will lighting at night.This sign warns you of a change in direction or narrowing of the road. You
may find several of these
sign on the outside of a sharp curve or on approaches to a narrow
bridge.
Specifications:
| Model | CS-SS-708 |
| Solar Panel | 5W/18V mono-crystalline |
| Storage Components | 11.1V/4.4AH Li-ion battery |
| Lighting Time | 100h after fully charged |
| Work mode | Flashed for 50times per minute |
| LED Color | Red |
| LED Qty | 54pcs |
| Visual Distance | ＞1000meters |
| Life Span | 3-5Years |
| Work Temperature | -20℃～+70℃ |
| Protect Level | IP65 |
| Material | Plastic with aluminum visor |
| Weight | 8kgs |
Wind load resistance | ≥1.5KN/㎡ |
| Size | 600*900*65mm |
| Package | Carton size 68*23*98CM,2pcs per carton |
Notices:
· 1. Open the packaging, check the products carefully, and take
them gentely.
· 2. It should install it outside to get better sunshine
· 3. It should charge it and check it lighting before installation
Size Drawing:

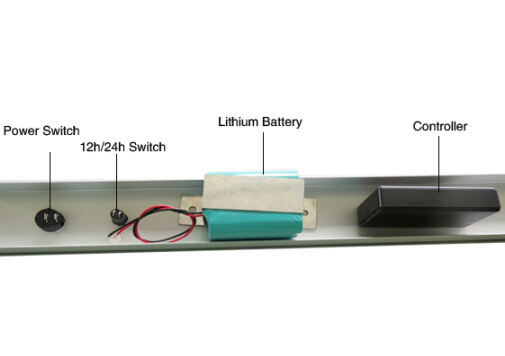

Battery Assembly details:

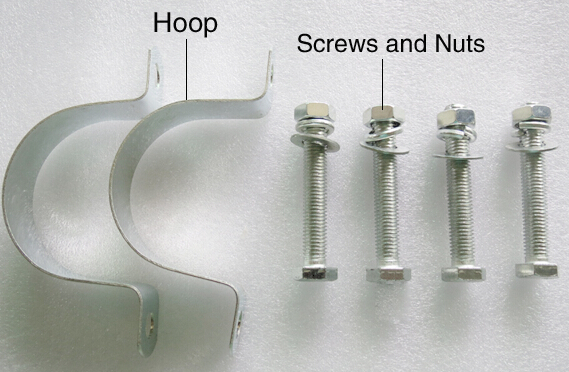

Hoops details:
Applications:
Solar chevron sign are mainly installed in those dangerous roads or
bridges with potential safety hazard, such as ramp, school gates,
diverted traffic,road corners,pedestrian ways,etc.Chevron Alignment
(W1-8) Sign is used to provide additional emphasis and guidance for
a change in horizontal alignment of the roadway. A Chevron sign may
be used as an alternate or supplement to standard delineators and
edge lines as appropriate on curves.
FAQ
Aluminum solar chevron sign with CE approval
Q1. Can I have a sample order for solar chevron sign?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,7-10 working days for mass
production.
Q3. Do you have any MOQ limit for solar chevron sign order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive.
Airline and sea shipping also optional.
Q5. How to proceed an order for solar chevron sign?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on solar chevron product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and 100% testing
Secondly, during the guarantee period, we will send new solar road
studs for replacement with our cost
